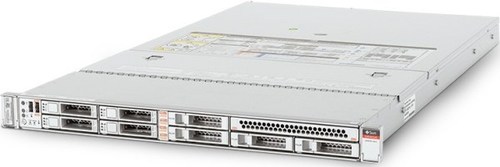

Oracle X7-2L Server

Processor

• One or two processors from the Intel Xeon Processor Scalable Family of processors (two processors required for maximum memory and I/O configurations)

• Up to 24 cores per processor

Main Memory

• Twenty-four DIMM slots provide up to 1.5 TB of DDR4 DIMM memory

• RDIMM options: 16 GB at DDR4-2666 and 32 GB at DDR4-2666

• LRDIMM option: 64 GB at DDR4-2666

Storage

• Twelve 3.5-inch front hot-swappable disk bays plus two internal M.2 boot drives

• Disk bays can be populated with 3.5-inch 10 TB HDDs or 2.5-inch NVMe solid-state drives (SSDs)

• PCIe flash

• Sixteen-port 12 Gb/sec RAID HBA supporting levels: 0, 1, 5, 6, 10, 50, and 60 with 1 GB of DDR3 onboard memory with flash memory backup via embedded internal SAS-3 HBA PCIe card

• Eight-port 12 Gb/sec SAS HBA with direct access to up to eight internal SAS-3 HDDs (two per system required)

Operating Systems

• Oracle Solaris

• Oracle Linux

Virtualization

• Oracle VM

Power

• Two 1,200 watt hot-swappable and redundant power supplies, rated 96% efficiency

• Rated line voltage: 100 to 240 VAC

• Rated input current 100 to 127 VAC 7.2 A and 200 to 240 VAC 3.4 A

Dimensions and Weight

• Height: 86.9 mm (3.4 in.)

• Width: 445.0 mm (17.5 in.)

• Depth: 759.4 mm (29.9 in.)

• Weight: 28.6 kg (63 lb.) fully populated
